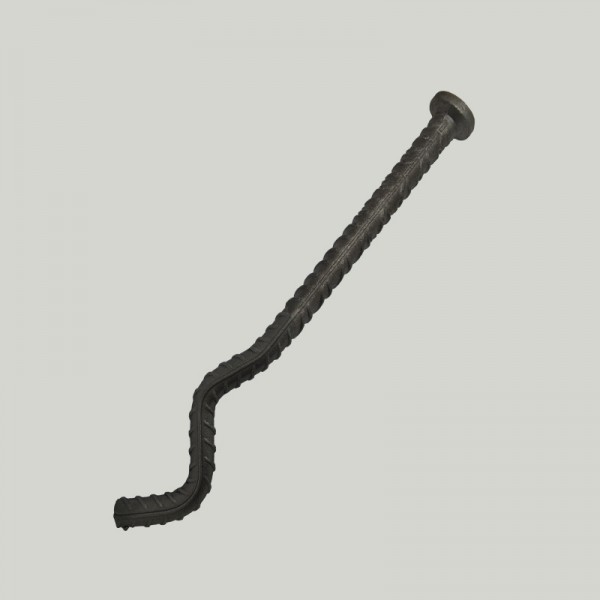

Precast Concrete Accessories Long Wave Tail Spherical Head Anchor

The SMPRE™ long wavy tail spherical head anchor is designed as a lifting anchor for reinforced wall components. The anchors are installed in the slabs edge. The specially shaped wave gives, particularly for thin wall elements with a low level of reinforcement, a gentle load application. This allows the production of thin precast concrete elements with minimum reinforcement outlay.

※  Material:Rebar BS400, BS500, ASTM grade 65, Grade 75;

※  Surface:Plain,Electrical Galvanized(E.Z.),Hot Dip Galvanized(H.D.G.);

※  Delivery Time:Usually 15-30 days for one container;

※  Packaging:20kgs per Woven bag,and 1 Ton per Plywood Box or according to your requirements;

※  Standard: EU Machinery Directive 2006/42/EC and VDI/BV-BS 6205.
